Specs:
- Type: Charge only
- Cell Chemistry: Li-ion (3.7V nominal)
- Balance method: Passive balance
- 4S-24S Series Count: 4-24S
- Charge Current: 20A
- Overcharge Voltage: 4.25V
- Overcharge Reset: 4.19V
- Balance: @4.2V
- Overtemperature: 60°C
- Overtemperature Reset: 40°C

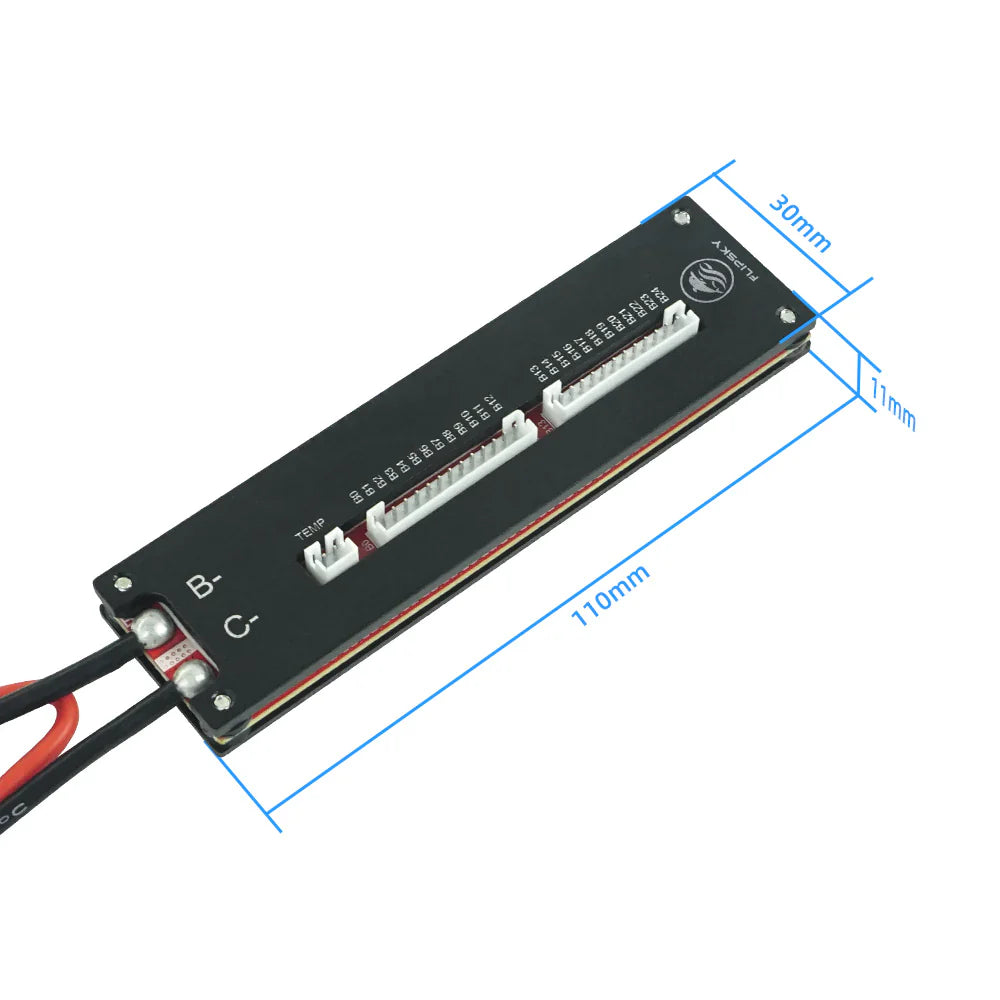

- Size: 110*30*11mm
- Net weight: 30g
Features:
-
Compact charge only design
-

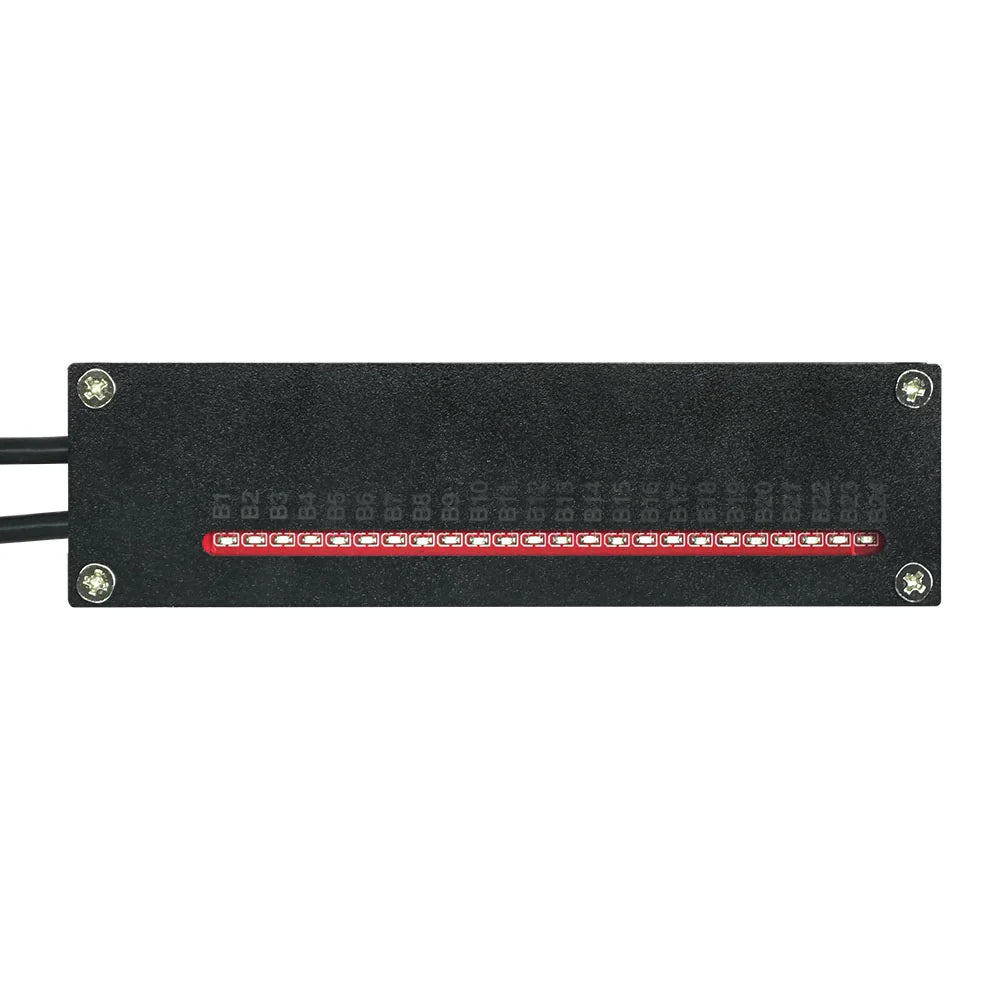

Cell balance indicator LED
-
Compatible with 4s-24s battery
-
Designed to be ultra-compact and simple to use without any configuration required
- Anodised aluminium heatsink case, stable performance.
Functions:
-
Balance function
-
Overcharge protection
-
Overtemperature protection
- Cell balance indicator LED
Operation Notes:

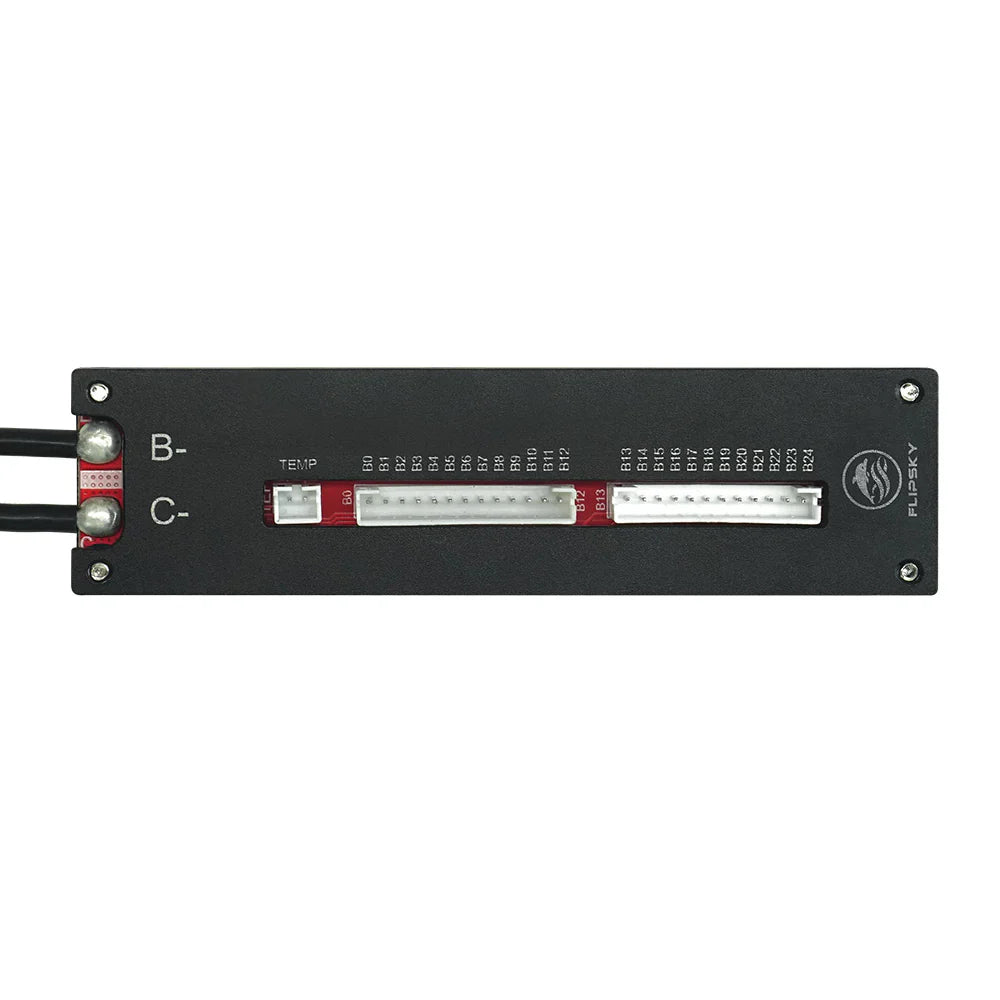

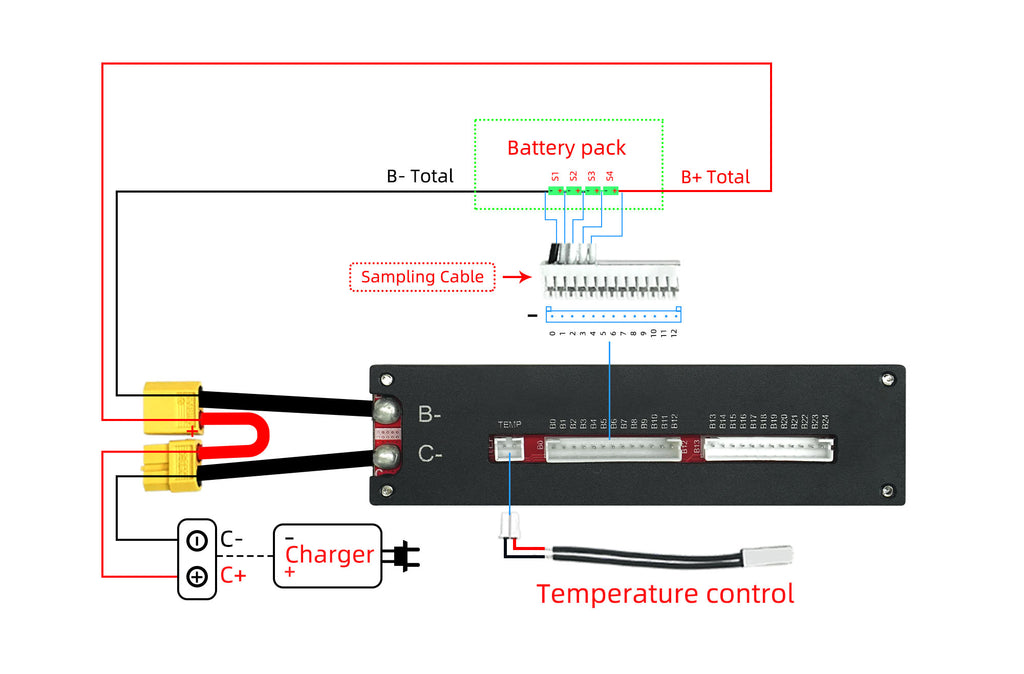

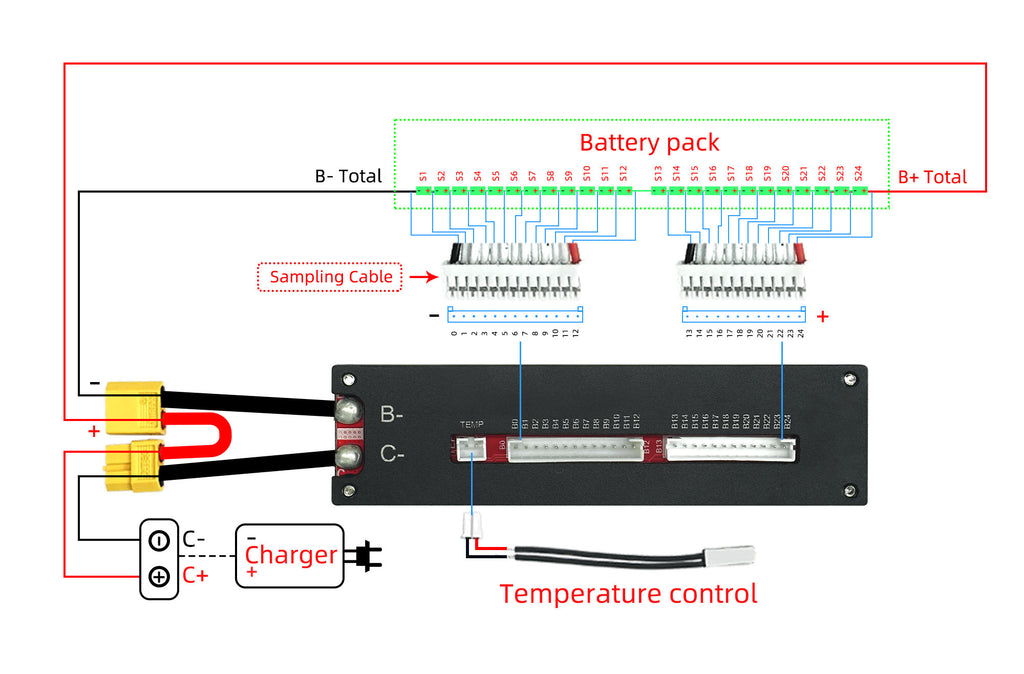

- Please ensure the correctness of the wiring sequence, from B0-B12, B13-B24, the voltage increases from low to high in sequence.
- This BMS is compatible with battery packs up to 24s, which is over 100V DC when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.
- This device is designed to reduce the risk of charging and will not protect against overcurrent discharge, undervoltage, internal pack shorts, pack overtemperature
