Specs:
Type: Smart Charge only
Cell Chemistry: Li-ion/LiFePO4
Number of Battery Strings: 6S-28S
Charge Current: 12A
Single cell voltage detection range: 2v-5v, error value: ±2mV
Balance: 28mA@4.2V, Passive balance
Connector: XT30/XT60
Short Circuit Protection: Support.
Bluetooth Function: Support for Android
Temperature detection: -30~125℃.
Voltage support range: 15V-118V
Abs. Max battery voltage: 120V
Shutdown Consumption: <80uA
Quantity of Temperature Detection: 4 Pcs (NTC)
SoC estimation accuracy: Error: 8% (operating conditions).
Operating power consumption: <40mA (UART/CAN).
Standby power consumption: <100uA.
Charge protection Temp: 0°C~100°C
Charge Temp Reset: 0°C~100°C
Recommended Working Temp: -20°C~+75°C
Size: 110*30*11mm
Features:
- Compact charge only design
- Cell balance indicator LED
- Compatible with 4s-30s battery
- Designed to be ultra-compact and simple to use without any configuration required
- Anodised aluminium heatsink case, stable performance
Functions:
- Balance function
- Overcharge protection
- Overtemperature protection
- Cell balance indicator LED
Operation Notes:

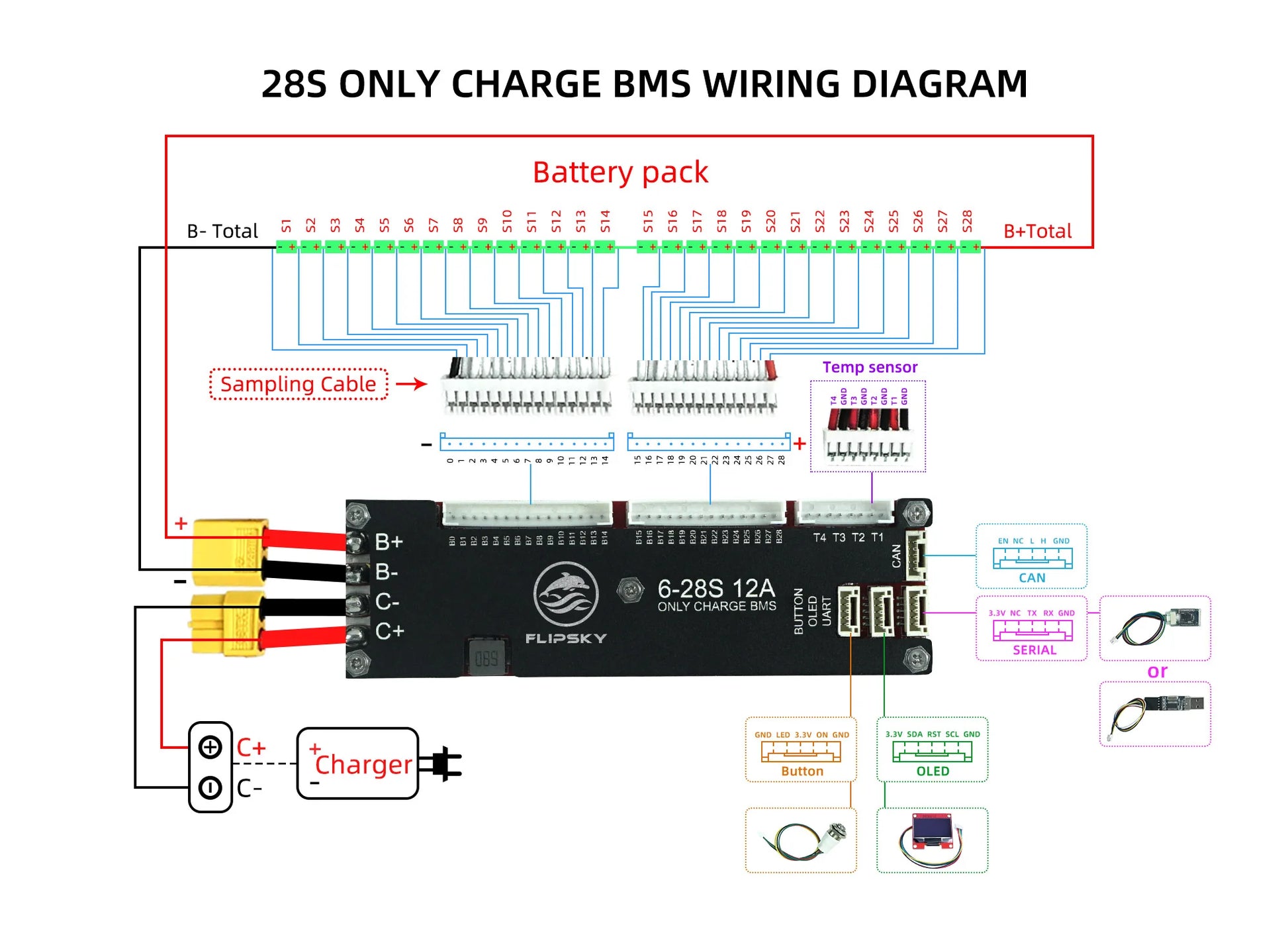

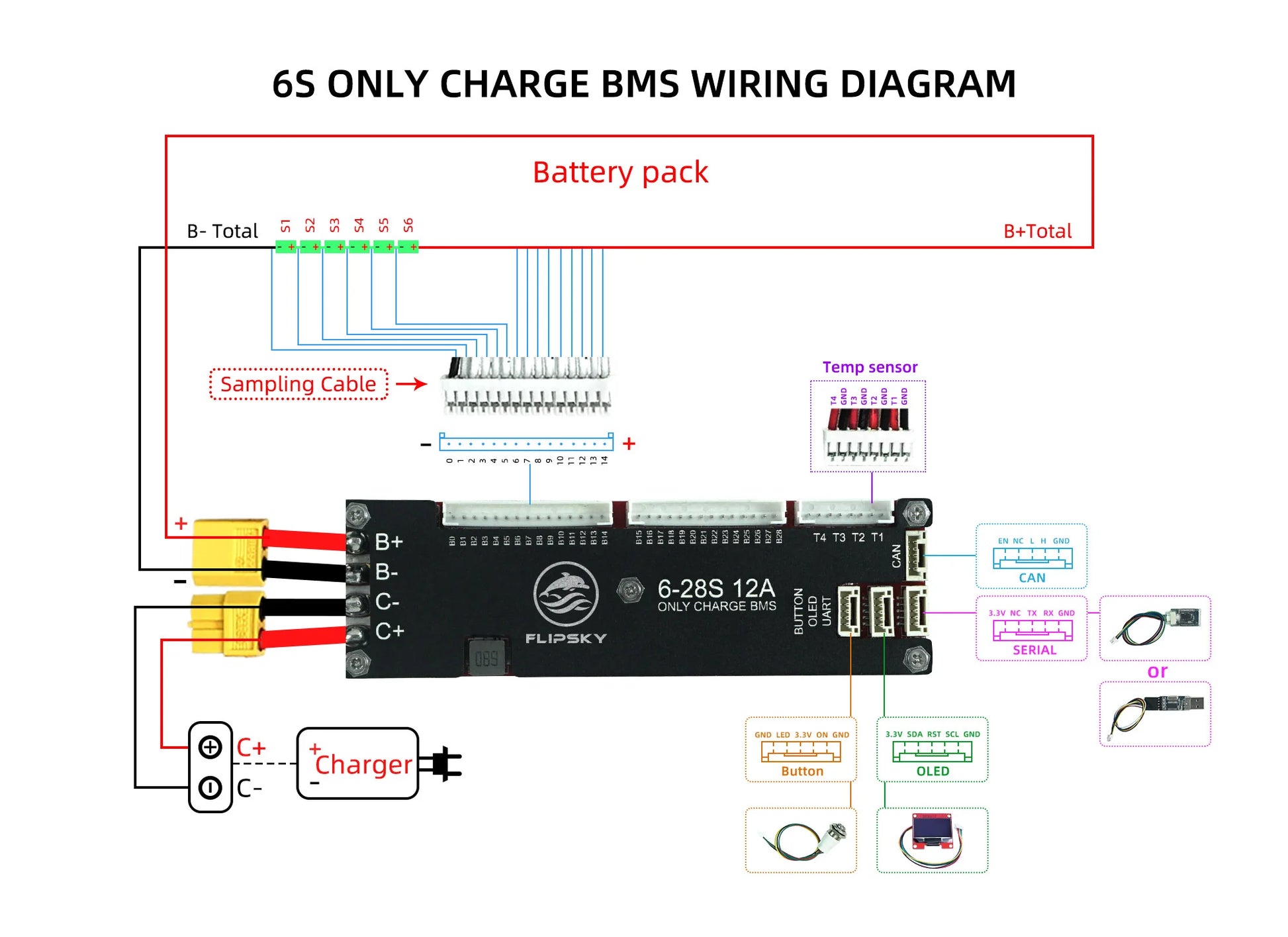

- Please ensure the correctness of the wiring sequence, from B0-B15, B16-B30, the voltage increases from low to high in sequence.
- This BMS is compatible with battery packs up to 30s, which is over 127.5V DC when fully charged. Electric shocks from high voltage may cause serious injury. Please pay attention to safety when using.
- This device is designed to reduce the risk of charging and will not protect against overcurrent discharge, undervoltage, internal pack shorts, pack overtemperature.
