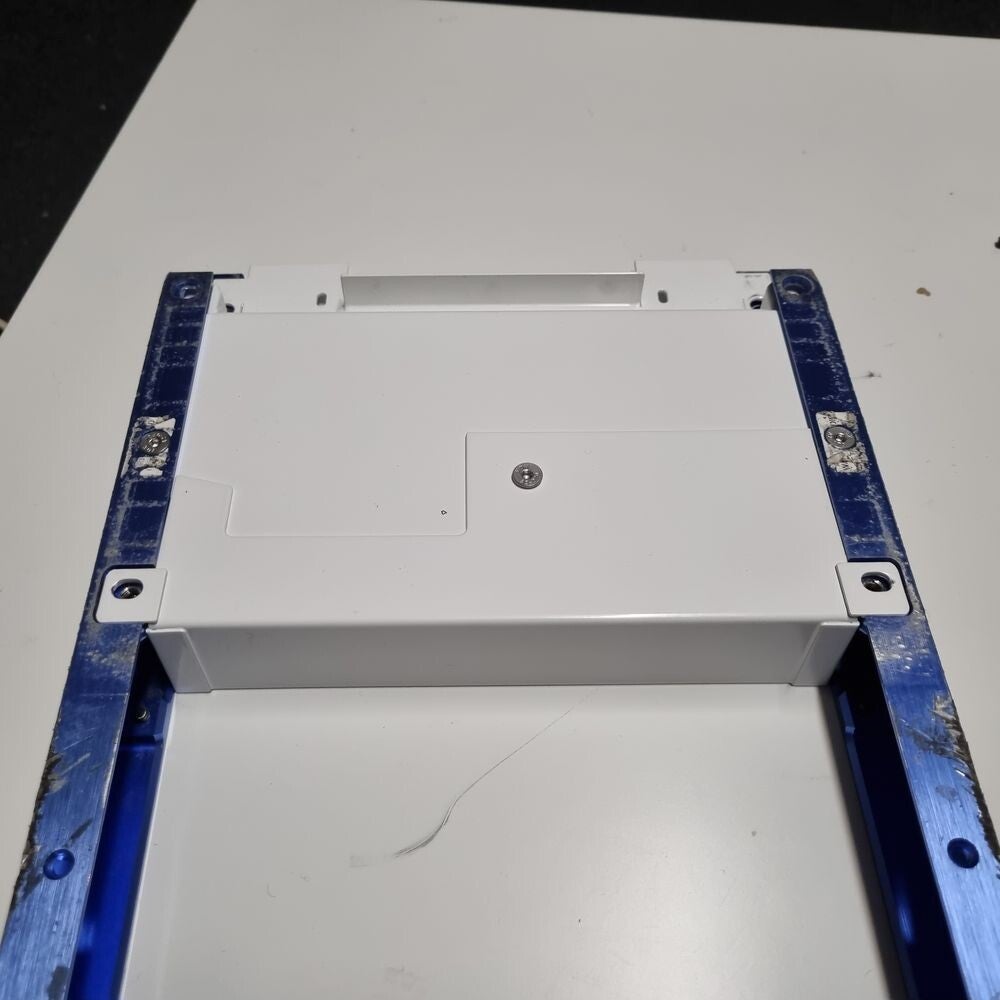

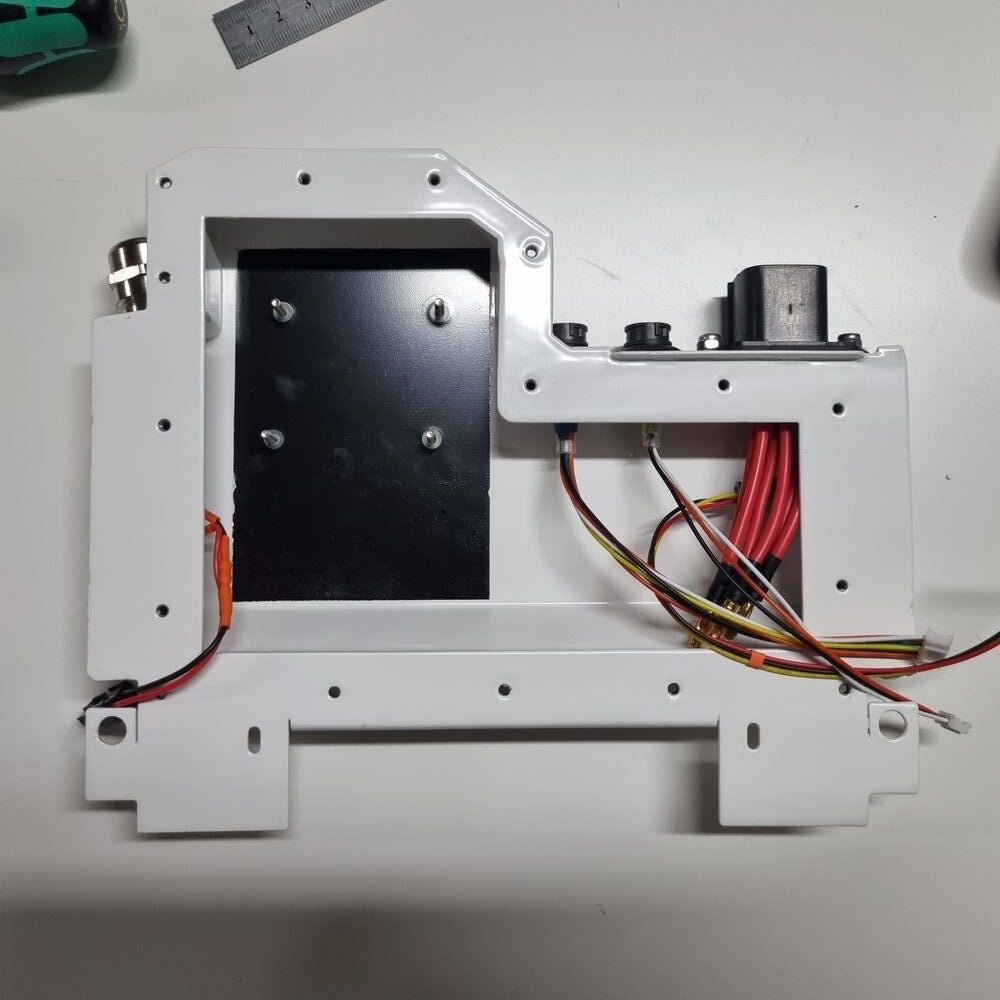

The Floatboxx MLC is an aluminium controller box to house the Little Focer VESC controller between XR style rails.
- Compatible with the XR platform
- Holes for the Switchcraft 6-pin Hall sensor and 3-pin footpad connectors.
MLC: for LFocer

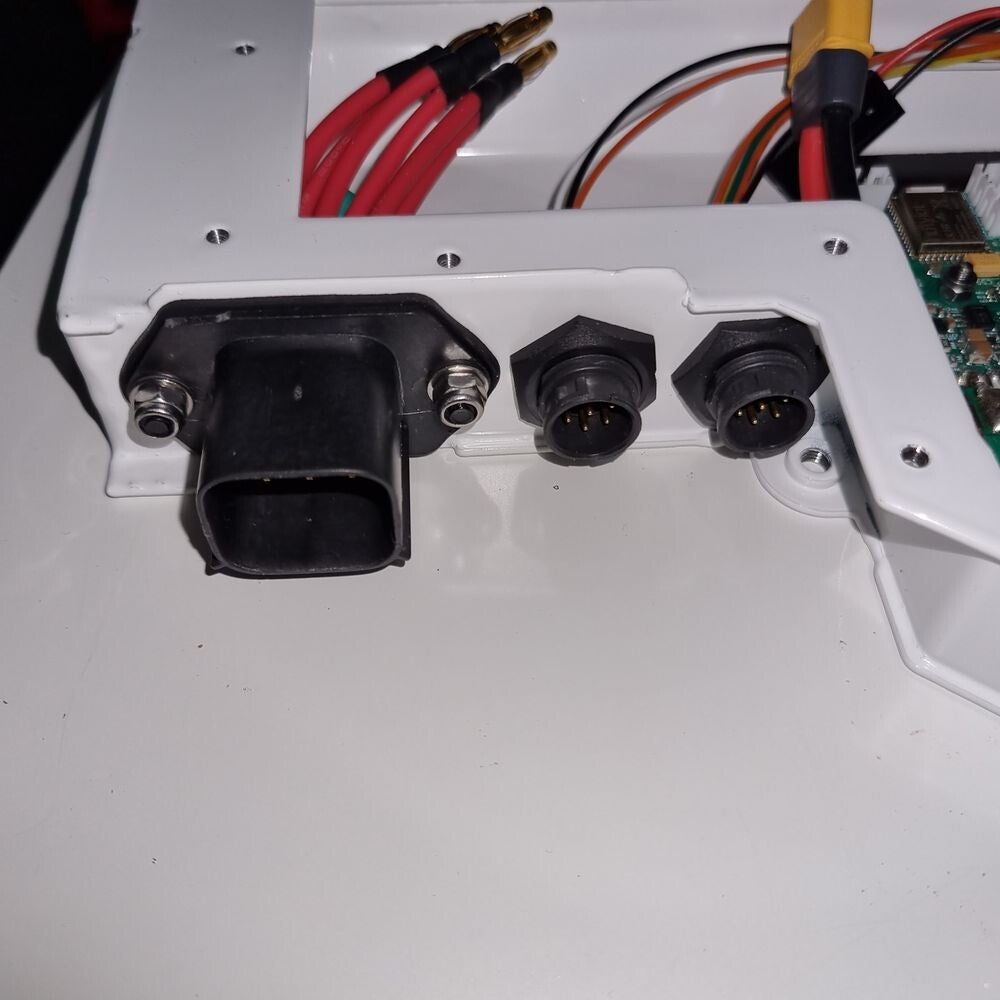

- M: Compatible with the Hypercore 6-pin Molex

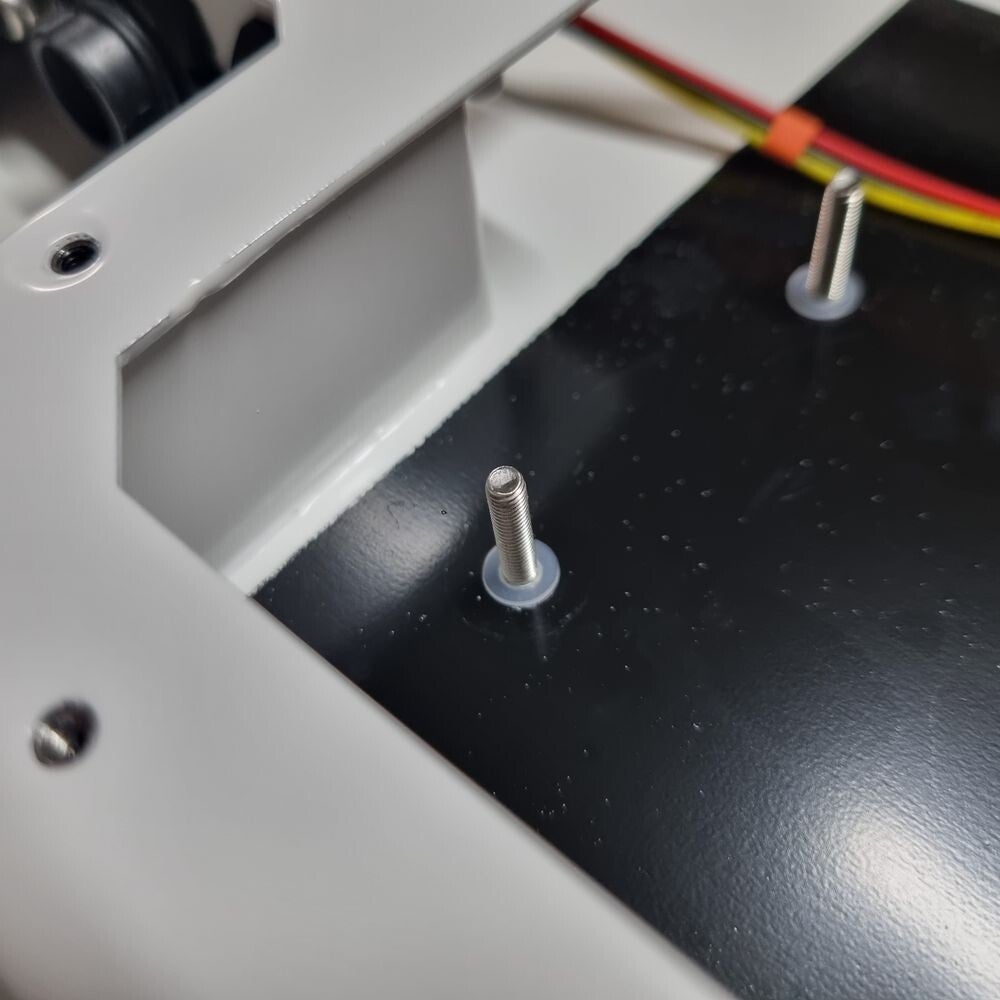

- L: With 4x M3 studs fixed to mount the Little Focer VESC
- C: for M20 Cable gland to feed through an XT60 connector and other BMS wires., replacing the Molex 16-pin battery connector.
Weight: 490 gr = 1.08 lbs (box, screws, lid, seal)
The advantage of Floatboxx aluminium box compared to other type of boxes:
- Strong! Does not break under heavy use
- Aluminium welded construction
- Stainless steel inserts for the lid and rail mounting
- Practical

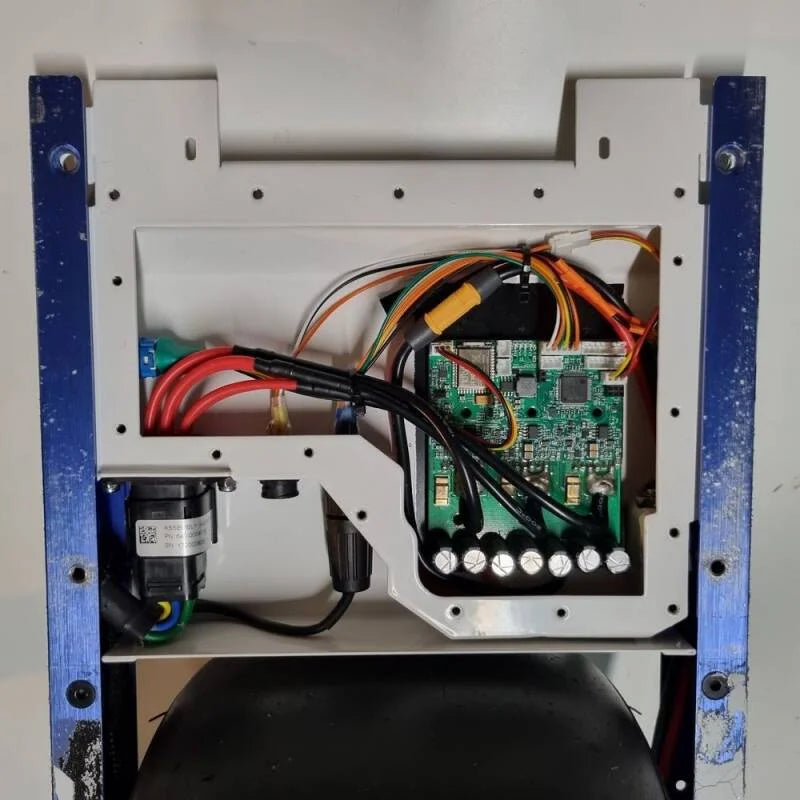

- The VESC can be mounted on the bottom and fixed on the M3 threaded studs.
- More space for Buzzer, BMS, rESCue, extra Li-Ion cells...

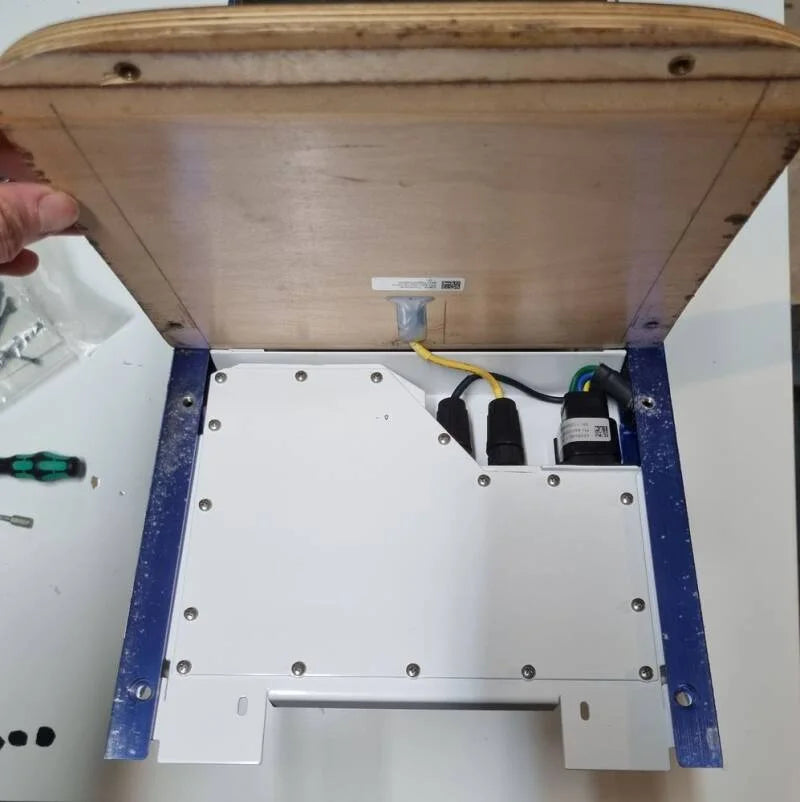

- Easy access for DIY: Just remove the footpad to access the lid. No need to remove rails, bumper, connector cover.
- Easy to waterproof: welding imperfections can be closed with silicone/MS Polymer/...
- The handle remains fully available
- Mounting holes for 3D printed LED strip holder
- Improved heat dissipation for the controller:
- The box is completely made of aluminium allowing optimal heat transfer.
- The area for the controller mounting is NOT powderpainted for optimal heat transfer
- There's an air channel between the bottom of the controller box and the bumper
- The box is completely made of aluminium allowing optimal heat transfer.
- Durable:

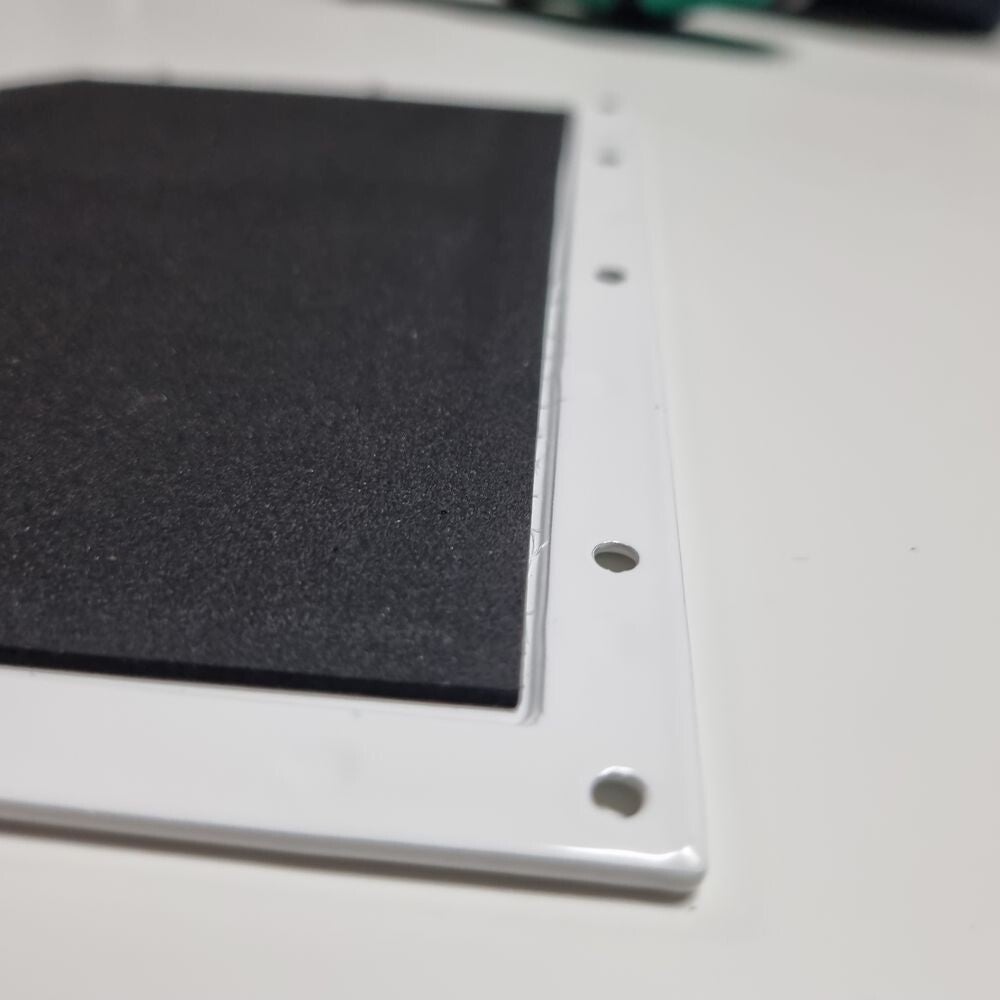

- the 2mm foamrubber sealing is compressed about 50% so the elastic properties are maintained after many cycles of opening.
Compatibility:

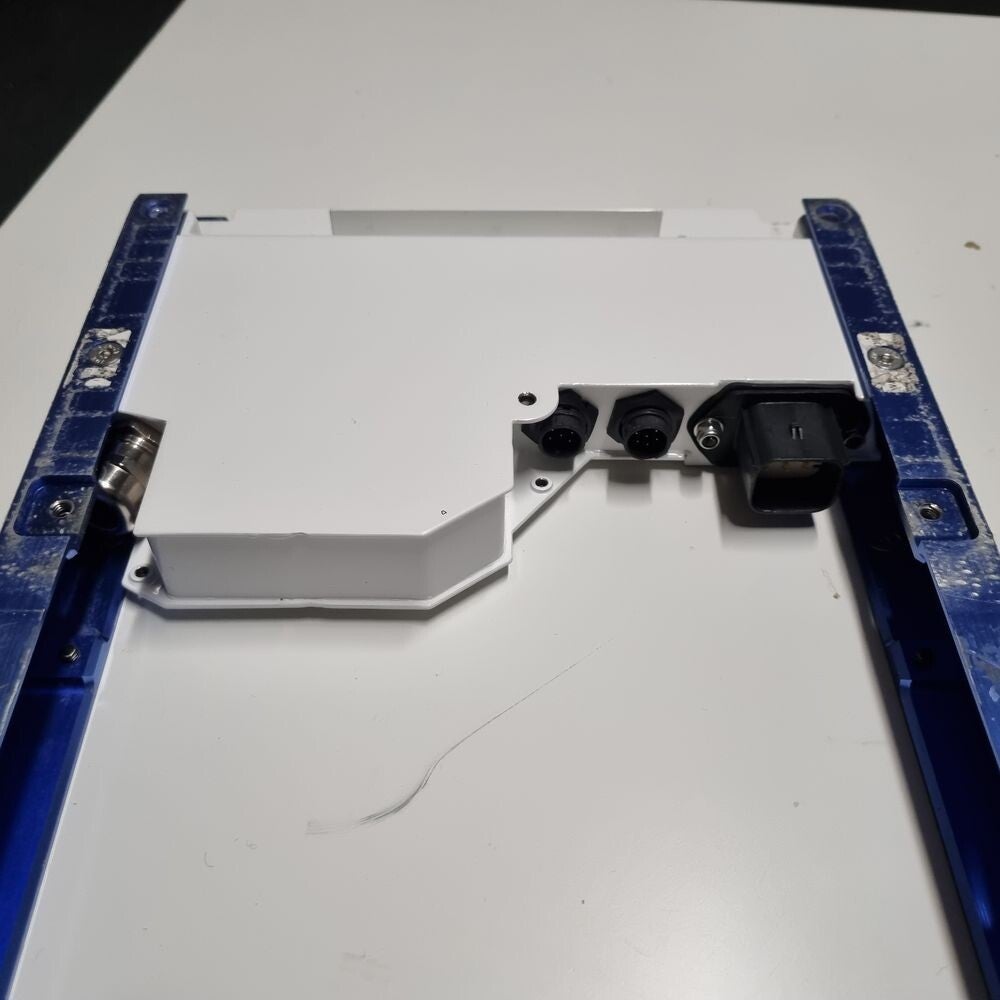

- rails: stock, Thunderrails, Varials, WTF*, Badgerwheel rails* (*requires some grinding of protrusions in the rail)
- bumpers: stock, BANGS, Badger bumpers* (*requires removal of the ridge near the wheel)
- footpad: stock XR, DIY footpads
Content:

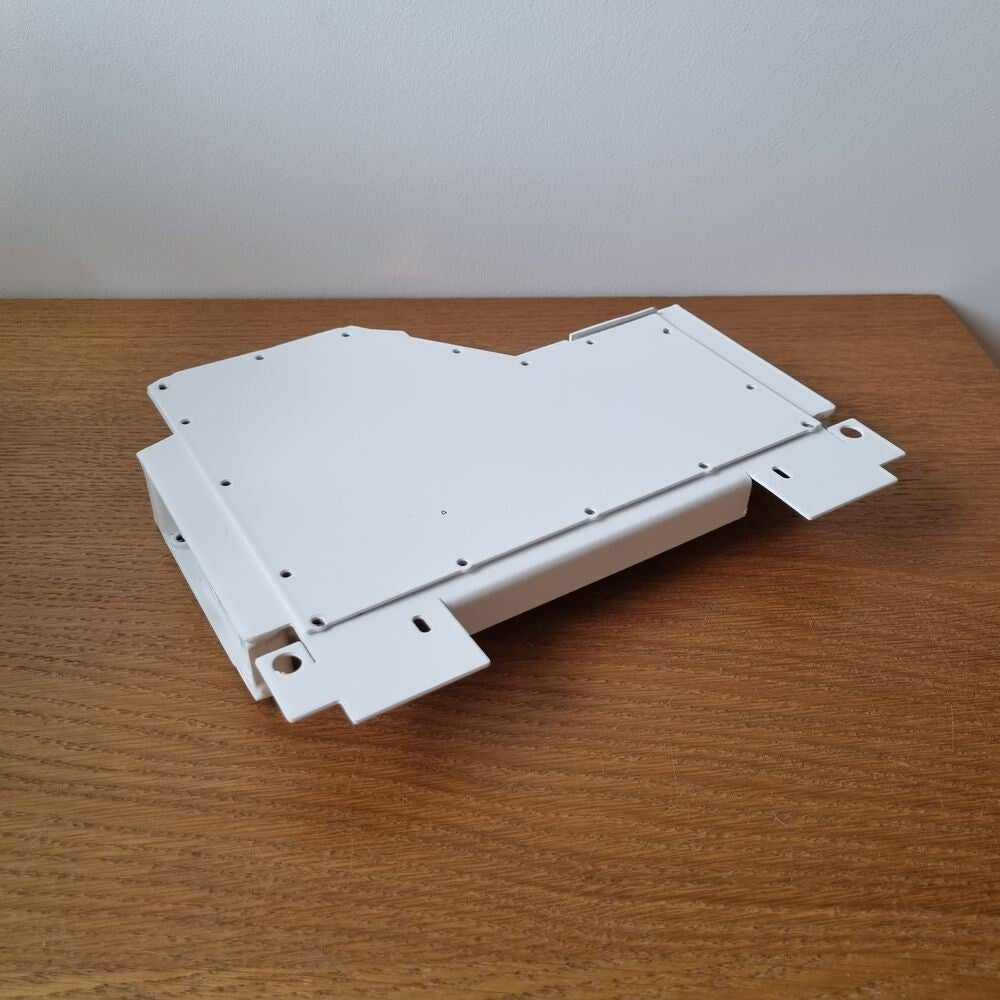

- aluminum box with aluminum lid (both powderpainted white)

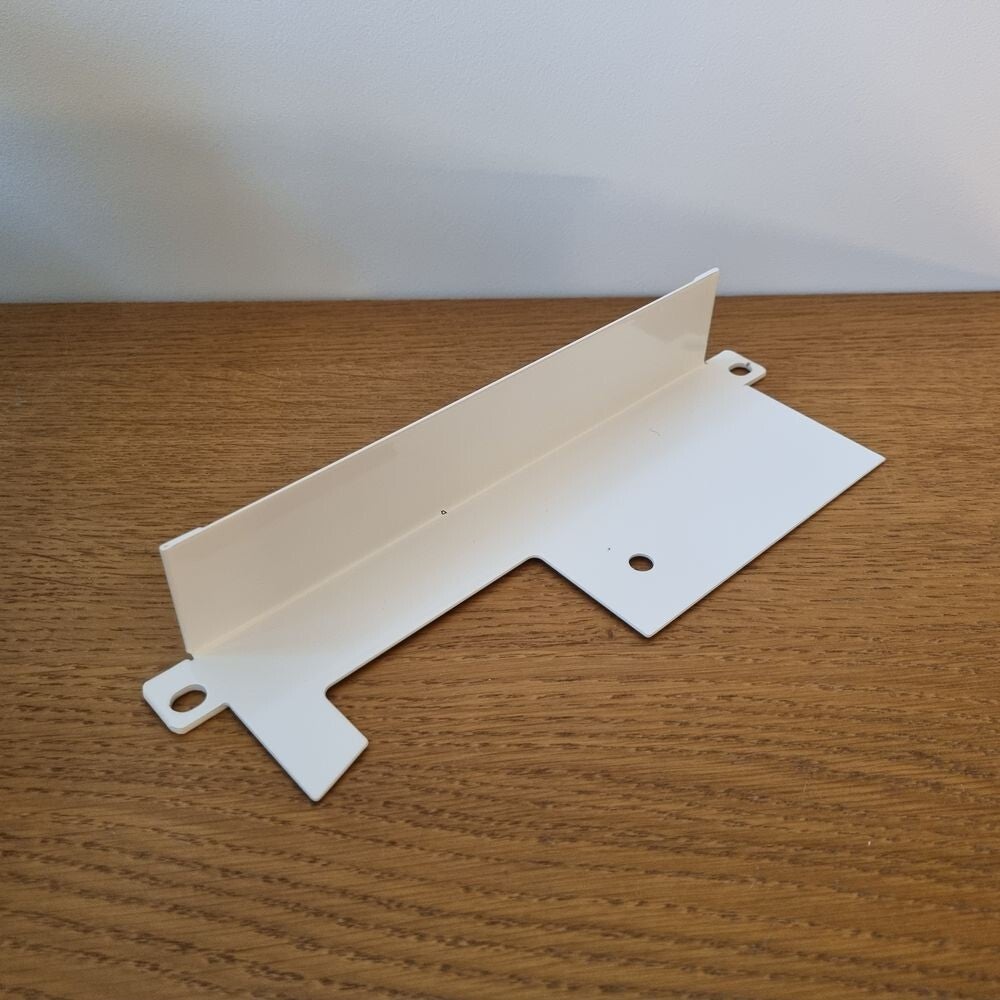

- aluminium Connector Cover (before sept 12th, this was optional. Now it is included standard)
- foamrubber sealing sticker
- 2 vent stickers

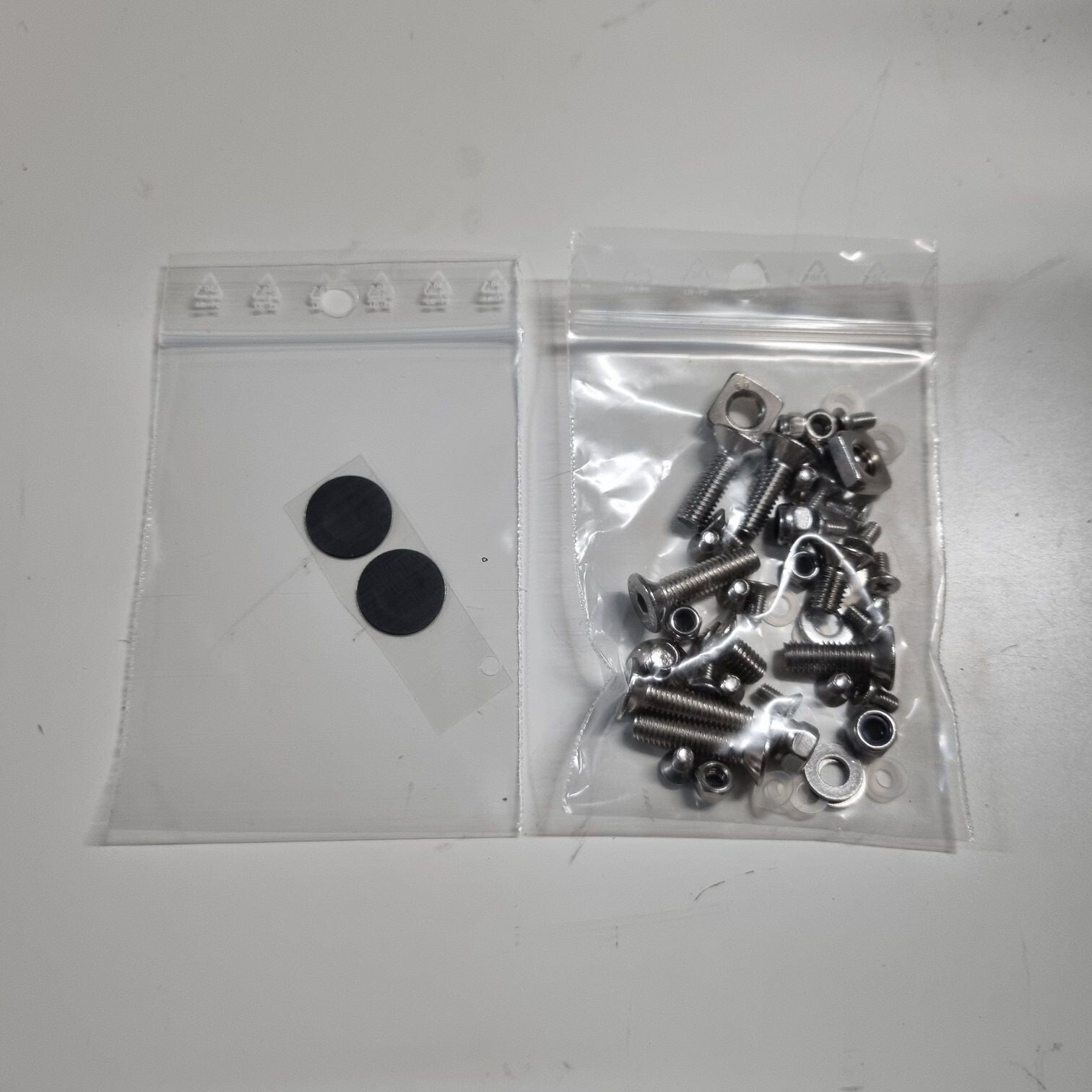

- all nut 'n bolts in stainless steel.
- M4 lock nuts and washers for the Molex 6-pin connector
- M5 countersunk screws for the mounting of the box to the rails, and the connector cover to the box
- M3 countersunk screws for the lid
- M3 lock nuts and nylon washers for the Little Focer
- 2 square spacers to fill up the gaps in front when using Bang Bumpers
Options:
- Hall/footpad extension cable set - 90 mm
- 12-core battery cable VESC: 2x AWG13, 2x AWG18, 8x AWG24 in PVC sheath OD 11 mm
- Adapter plate to mount an M20 cable gland for Superflux motor.
- The most compact M20 cable gland on the market.
- A tiny cable cable gland for the LED cable

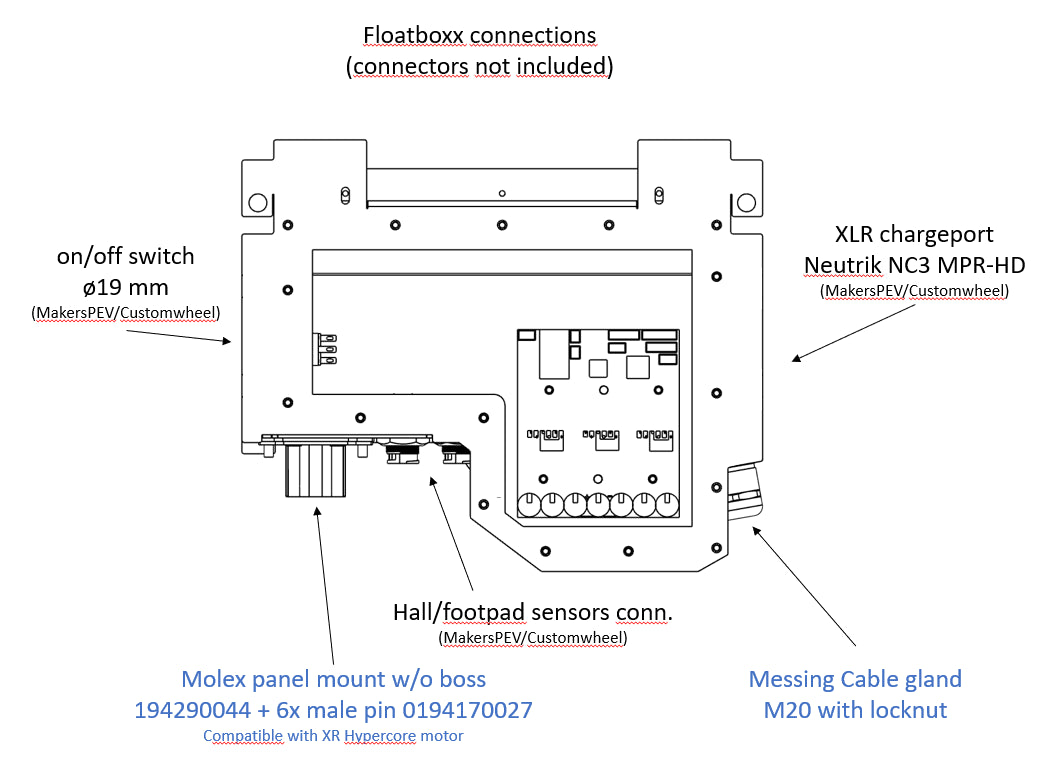

Connections:
The connectors should be purchased separately:

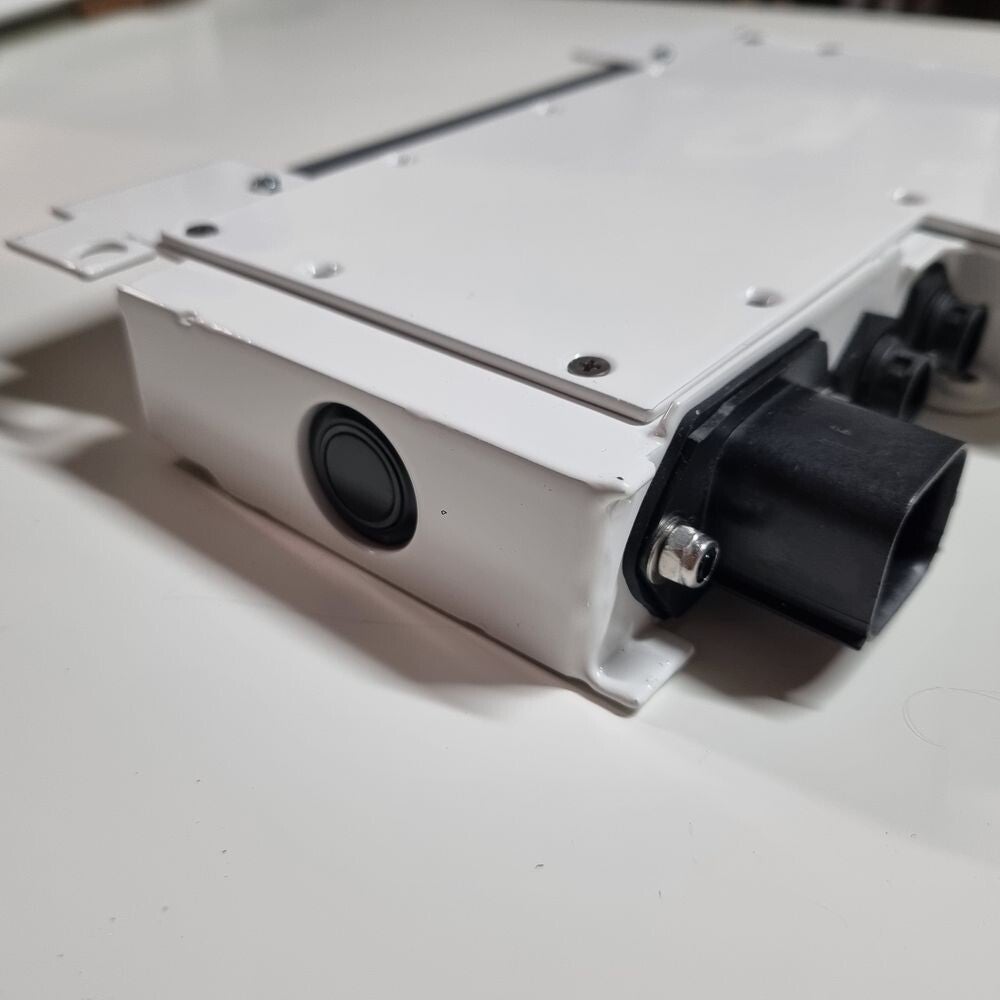

- on/off switch: ø19 mm hole for the switch, wall thickness 9 mm
- Pre-wired available from MakersPEV/Customwheel.
- charge plug: ø20,5 mm hole for the Neutrik NC3 MPR-HD XLR
- Pre-wired available from MakersPEV/Customwheel)

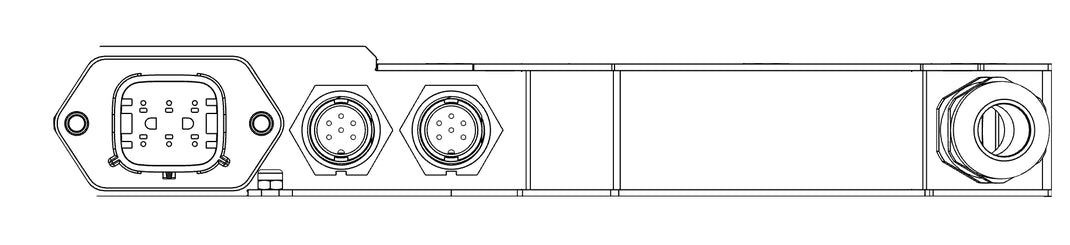

- hall/footpad: 2x D-shaped holes for Switchcraft connectors
- Prewired from CustomWheel have typical too short wires (~100mm). Ask them for 200 mm wires or buy an extension set from Floatboxx.

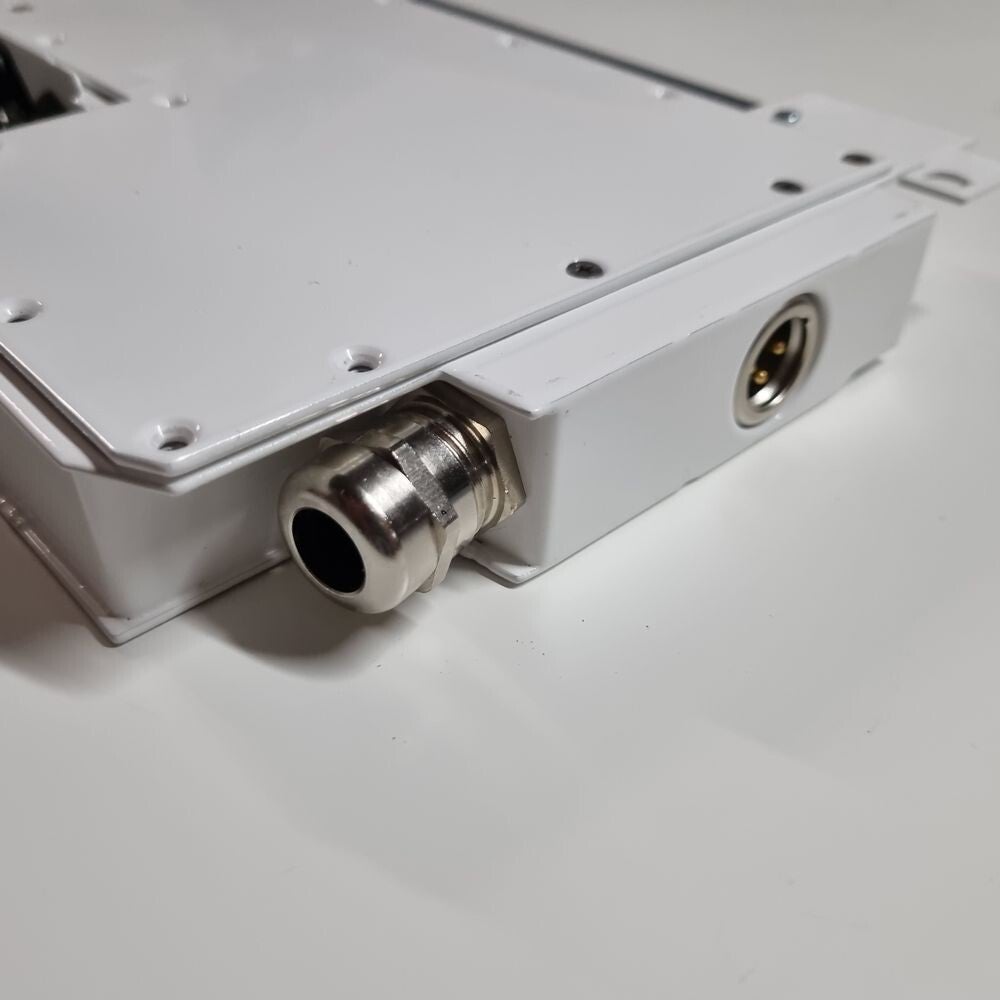

- battery harnass: ø20,5 mm hole for M20x1,5 cable gland with lock nut.
- Make sure you get the variant with the 22mm dome nut (not 24 mm)!
- motor: compatible with the Hypercore 6-pin Molex. Note that we designed for the Molex 6-pin with the gasket outside the box:
- Build it yourself with these components
- Molex CONN PLUG HSG 6POS 5.84MM 194290044, panel mount w/o boss (digikey link)
- Molex CONN PIN 14-16AWG CRIMP TIN 0194170027, male pin, 6x (digikey link)
- Build it yourself with these components
Notes:
- This uses metric screws and tools: M5 to mount the box, M3 to mount the lid
- Floatboxx is not guaranteed to be waterproof on it's own. Do a visual inspection first for small gaps. For 100% certainty: use the Badgerwheel kit . Total waterproofness depends on the complete assembly by the user.
- Use a 1 mm thermal pad between the box and the Mosfets. The location of the VESC controller has no powdercoating for optimal heat transfer.
- we advise 1 mm because we supply a 0,5 mm nylon washer to go below the Mosfets as electrical isolator
