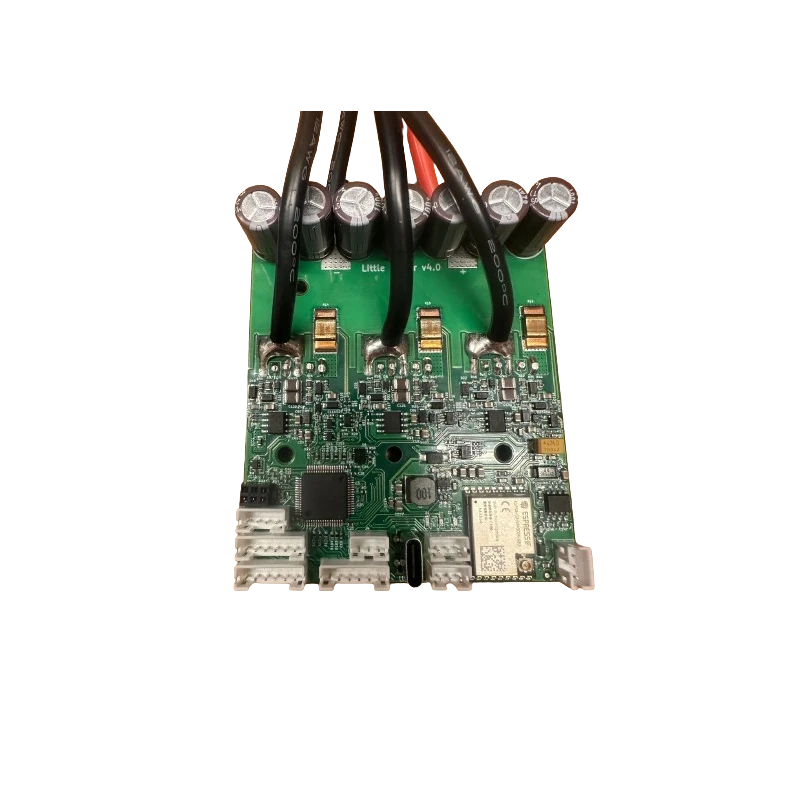

Take your riding experience to new heights with the Little FOCer v4 compatible with VESC® Software. This ESC offers a perfect combination of performance, reliability and ease of use for a smooth and seamless riding experience.
With the extra Power from Little FOCer v4 you'll be leaving others in your dust!
Whether you simply enjoy higher voltage riding as a hobby or repairability is a big deal for you, the Little FOCer V4 is the ultimate upgrade for everyone who wants more from riding experience.
Has Built in LED Pins! Have Headlights, Rearlights and Status Lights all natively!
Specs:
- 15V to 84V operation 20S li-ion.
- Max operating battery amps: 100A.
- Max peak motor amps: 250A.
- 5kw to 8kw max power.
- The Vesc has the primary features of VESC controllers (FOC, configurable
- current/temperature limits, throttle response, single motor operation, etc.)
- IMU for balance applications such as EUCs or any other kind of balance boards.
- New Phase filters to use the full ASS/VSS sensorless feature.
- The integrated powerful Bluetooth ESP32 c3 is easy to connect with the Vesc Tool App.
- DRV less design
- Sophisticated fault detection for over-current, over-voltage, gate drive errors, and more.
- Easy On/Off capability with latching switch of choice.
- ESD Protected IO.
- Designed to enable excellent thermal management and cooling.
- 72mm x 84mm board size.
This version has the caps on the opposite side of the MOSFETs so it can be used to attach it to an aluminum plate or chassis.
The Little FocFM V4 is based upon the VESC®-Project. VESC is a registered TM, owned by Benjamin Vedder
