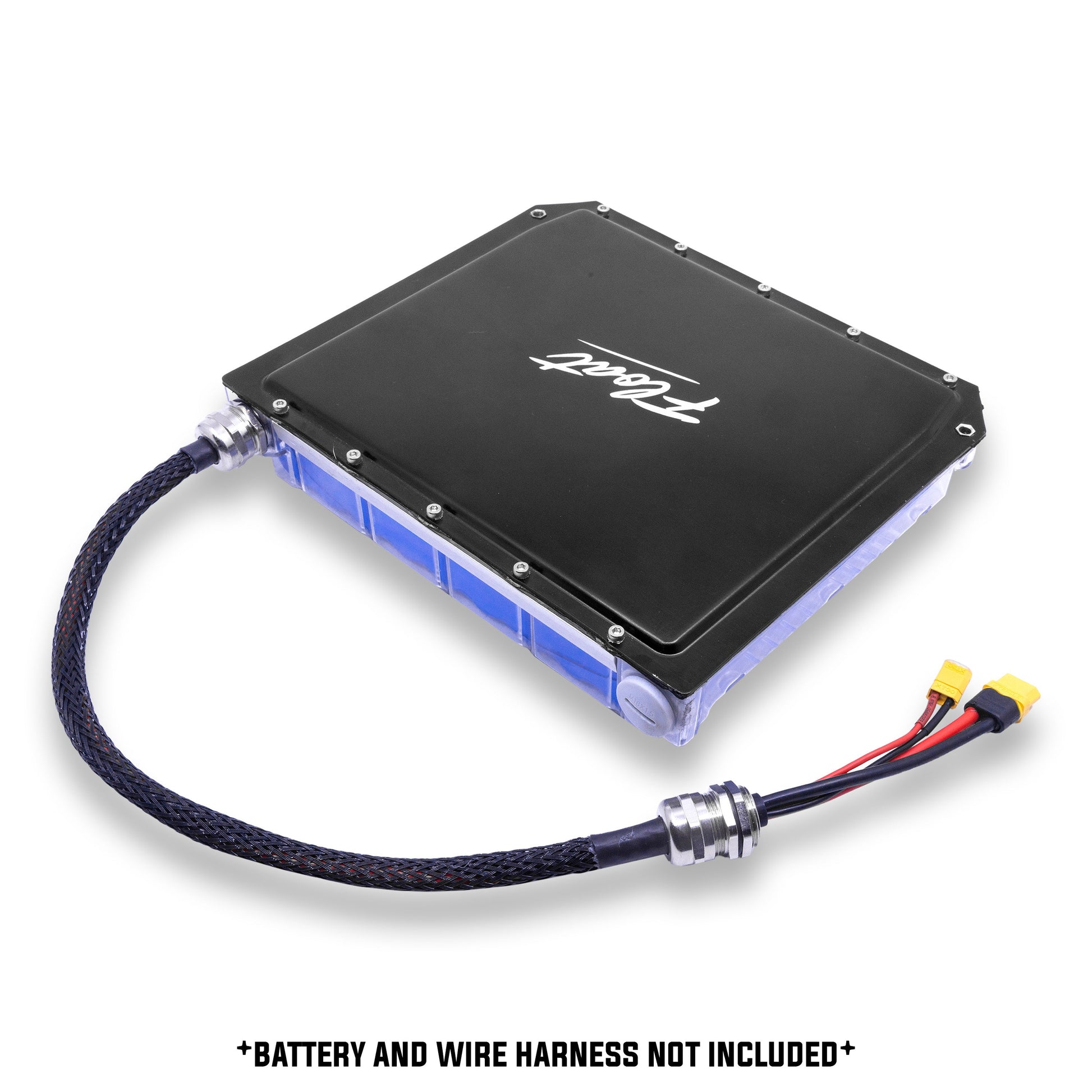

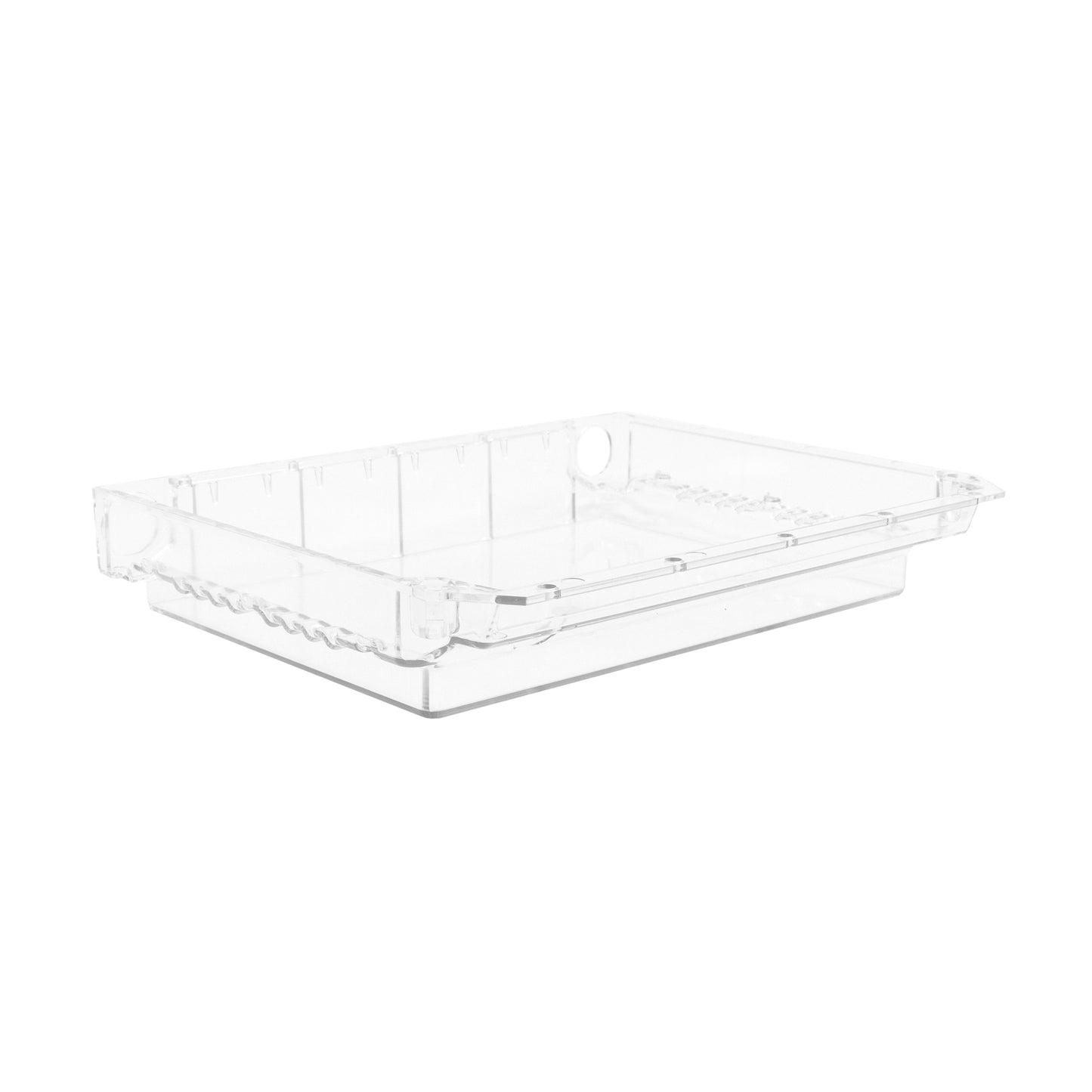

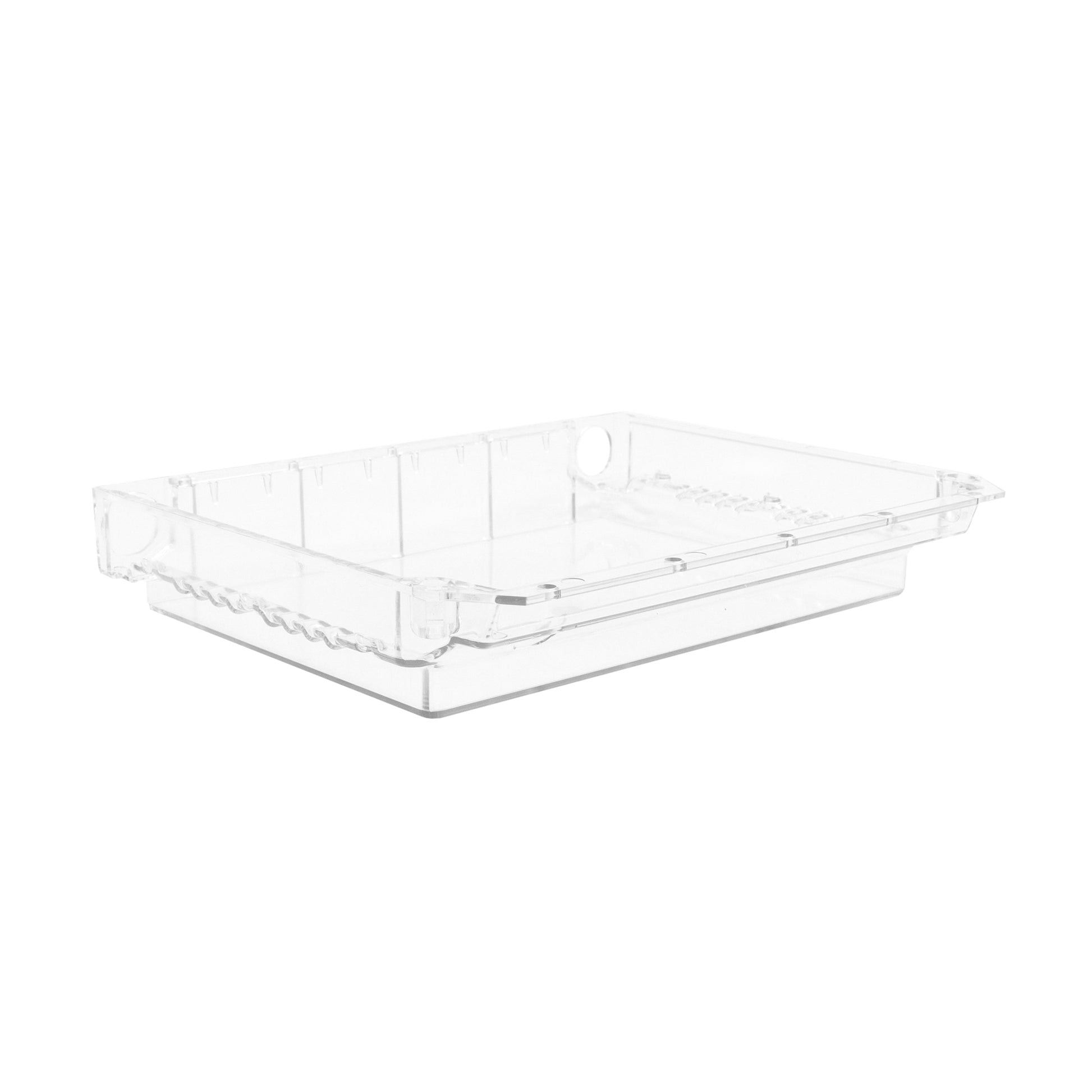

Extended Size Battery Box replacement for Onewheel XR. 2mm more inside height and 7.5mm more length! Be sure to order the matching extended TORque B.A.N.G. Bumper!
Compatible Pack Configurations:
- 18650 20s2p
- 18650 15s3p
- 21700 19s2p
- 21700 18s2p
- 21700 32s1p
- or Smaller Configurations
TORque Box 2 Install:
install Gland plug in spare Gland orifice
install and route all wiring out of
crush and pinch points between battery and box.
CBXR/JWXR/CBCSO:
Use 2mm - 2.5mm spacer to support battery (IMPORTANT!!)
6 sheets of a4 folded in half twice is about 2.5mm
For all other packs, use of spacer will vary
between configuration and manufacturers, use according spacer

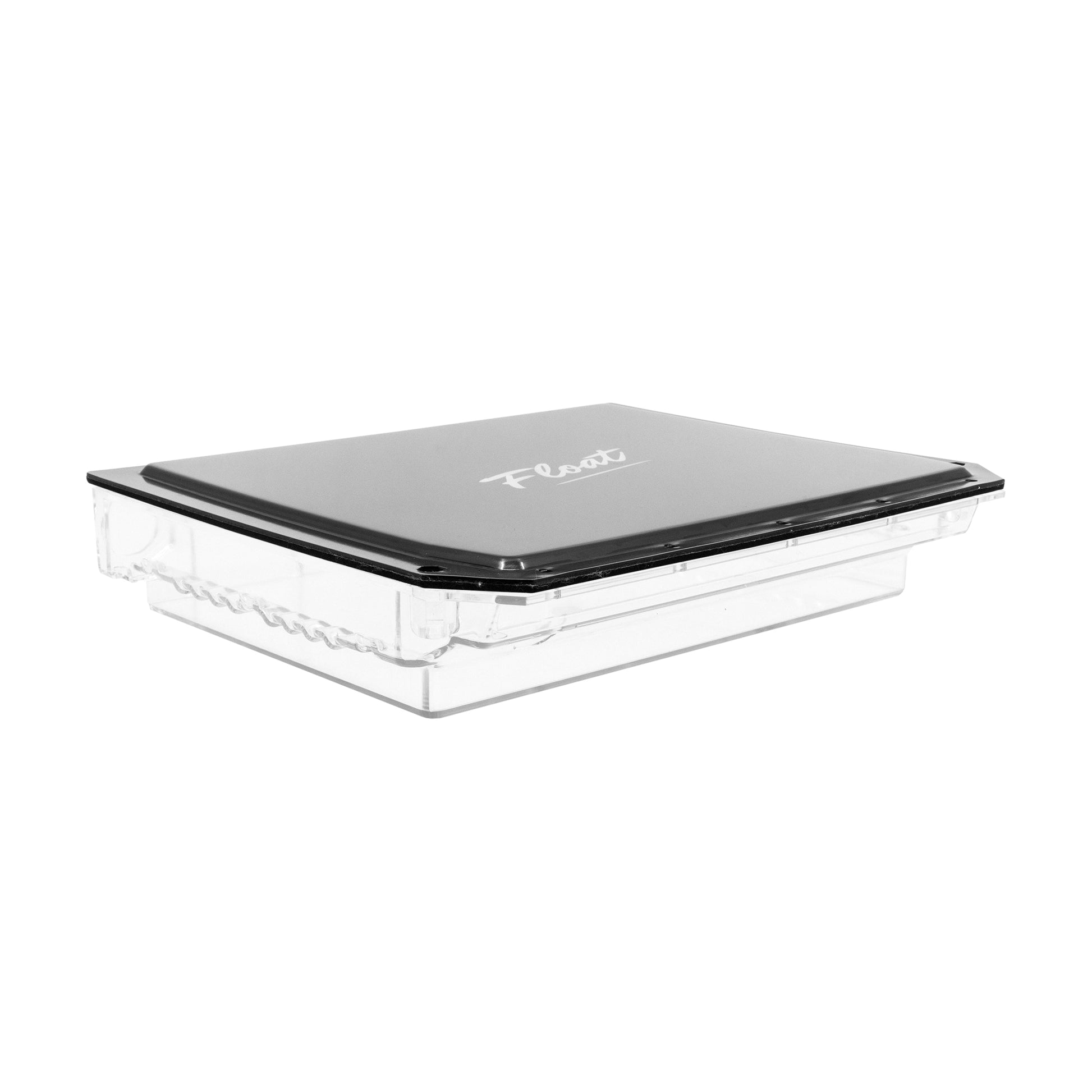

Lid install:
5 long screws go into tyre side
5 short screws go into headlight side
make sure screws are straight in plate
put all screws into lid plates loose
then tighten all down
Don’t forget the vent!!
2 vents are included with each box.
Check your assembled box for leaks,
and install a vent over the hole.
To install on rails:
sandwich the two side plates between the TORquebox and rail
then install screws accordingly
